Luxury Retail Showroom — 18-Unit Nesting Side Table Rollout

The Challenge

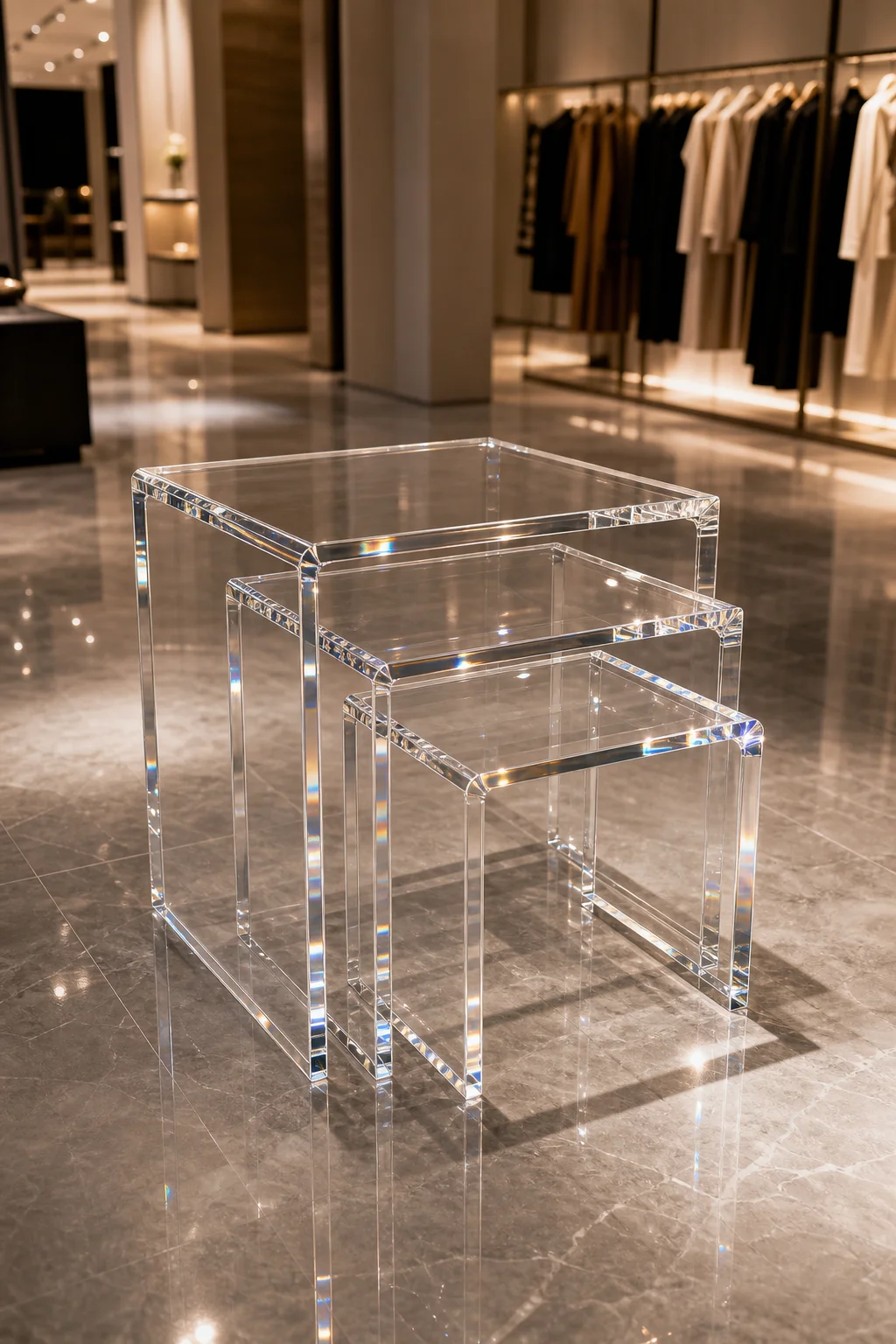

The buyer's visual merchandising team rotated product staging across 3 showroom zones daily — handbags, shoes, and ready-to-wear — with each zone requiring 6 nesting side tables as product pedestals. Each table is a 3-tier nest: large (600 × 400 × 450 mm), medium (500 × 340 × 350 mm), and small (400 × 280 × 250 mm). The tiers stack inside one another for overnight storage and pull apart for daytime staging.

The previous acrylic supplier had delivered nesting tables with ±1.2 mm dimensional variance. At that tolerance, the medium tier wobbled inside the large and the small tier rocked inside the medium — audible rattling during rearrangement, visible gap lines under showroom spot lighting. After 8 months, accumulated micro-scratching from daily nesting and unnesting had hazed the surfaces enough that the retailer's brand team pulled the tables from rotation.

The showroom environment itself compounded the problem. High-CRI LED spot lighting at 4000K — standard in European luxury retail — exposed every surface imperfection that overhead fluorescent would mask. The retailer's brand guidelines required that acrylic furniture read as glass: no visible flow lines, no edge cloudiness, no surface haze. Any table that failed that test under their lighting rig got pulled, regardless of structural condition.

Three specs drove the replacement brief: nesting tolerance tight enough to eliminate wobble (the retailer's architect specified ±0.5 mm, which we tightened to ±0.3 mm), anti-scratch performance that survives 3+ years of daily VM rotation, and optical clarity that reads as glass under directional lighting. Lead time constraint was 5 weeks total including ocean freight to Europe.

Our Approach

Three production decisions determined whether the nesting tables would hold tolerance and surface quality across 3+ years of daily rotation.

Nesting tolerance engineering

The wobble problem on the previous supplier's tables traced to two root causes: inconsistent sheet thickness (extruded PMMA varies ±0.5-0.8 mm at 12 mm nominal) and CNC routing tolerance accumulated across 3 nested dimensions. We specified 12 mm cast PMMA (thickness tolerance ±0.15 mm vs ±0.5-0.8 mm on extruded) and ran all 54 pieces on the same CNC program with toolpath compensation calibrated to the actual sheet thickness measured at incoming QC. Each nested pair was test-fit on the production floor before polishing — if any pair showed detectable wobble, the offending piece went back to CNC for a single re-pass on the mating edge. Final tolerance across all 54 pieces: ±0.3 mm, which is the threshold below which wobble disappears and the 3-tier nest sits as a single rigid stack.

Anti-scratch coating decision

Daily handling makes surface protection a commercial decision, especially under directional showroom lighting. Wetop can quote uncoated PMMA and a coated option, but the coating grade, hardness method, appearance, care instructions, and price must come from supplier data and an approved sample rather than a generic service-life promise.

Optical clarity QC process

At 12 mm thickness, the difference between cast and extruded PMMA is visible to the naked eye under spot lighting. Extruded sheet shows flow lines — faint directional streaks from the extrusion process — that are invisible at 3-6 mm but unmistakable at 12 mm under the high-CRI LED spots used in luxury retail environments. Cast sheet has no flow lines because the polymerization happens in a static mold. We inspected each piece under 4000K directional LED at 1-meter distance (simulating showroom conditions) and rejected any piece showing visible inclusions, flow artifacts, or surface defects exceeding 0.2 mm.

Construction: CNC routing from 12 mm cast PMMA sheet, solvent welding at all structural joints (solvent weld is stronger than the parent material at this thickness — the joint fails in the sheet before it fails at the weld line), 4-side diamond polishing, nano-coating application, individual test-fit of each 3-tier nest. For the full customization workflow on acrylic furniture, see our process page.

Acceptance Plan and Modeled Outcome

Production ran 18 days from approved spec to FOB. Substrate sourcing took 4 days (single-batch cast PMMA order for sheet consistency across all 54 pieces). CNC routing ran 6 days (18 nests × 3 tiers, each piece CNC'd and test-fit before moving to polish). Diamond polishing + nano-coating application took 5 days. Final QC, individual foam-cushion crating, and inter-tier separators took 3 days. Ocean freight ran 14 days to the European port.

Crating was the other variable that determined whether the 54 pieces arrived intact. Each 3-tier nest shipped in its own foam-cushion crate with closed-cell polyethylene separators between tiers — the separators prevent surface-to-surface contact during transit vibration, which is the primary cause of micro-scratching on coated acrylic in shipping. The 18 crates palletized into a single 20-foot container for the 14-day ocean freight leg. On arrival, the retailer's receiving team unpacked and test-fit each nest on-site: zero breakage, zero coating damage, zero dimensional drift from transit stress. That zero-damage rate on 54 coated acrylic pieces across ocean freight is not typical — standard bubble-wrap packing on uncoated acrylic typically runs 3-5% transit damage at this piece count.

The acceptance plan cannot substitute a three-year claim for actual field data. It therefore records the approved finish, coating data, nesting clearance, joint condition, and handling assumptions so the buyer has a baseline for its own rotation and maintenance review.

What This Means for Your Project

If you're spec'ing acrylic furniture for retail display — especially nesting or stacking pieces that get handled daily — two specs determine whether the product survives the rotation cycle or gets pulled at month 12.

Nesting tolerance: ±0.3 mm is the threshold where wobble disappears on 3-tier nested acrylic furniture. Achieving it requires cast sheet (not extruded), CNC toolpath compensation calibrated to measured sheet thickness, and production-floor test-fitting of each nested pair before polishing. If your supplier quotes ±1.0 mm or doesn't specify nesting tolerance at all, expect audible rattle and visible gap lines within the first month of VM rotation.

Scratch resistance: compare finish samples under the showroom’s actual lighting and request the coating supplier’s test method. The right decision depends on handling frequency, cleaning practice, acceptable appearance, and replacement economics.

Crating for ocean freight: nesting acrylic furniture is more fragile in transit than flat-panel pieces because the nested tiers can shift and grind against each other during container movement. Individual foam-cushion crating with inter-tier separators is non-negotiable on ocean shipments longer than 7 days. The crating cost runs $12-$18 per nest at this scale — negligible against a $0 transit-damage rate on 54 pieces over 14 days. Ask any prospective supplier how they plan to crate nested pieces, and reject answers that amount to stretch-wrap-and-stack.

Material selection at 12 mm thickness: the visual difference between cast and extruded PMMA is invisible at 3 mm but obvious at 12 mm under directional lighting. Extruded sheet shows flow lines from the manufacturing process — faint directional streaks that read as surface defects under high-CRI spots. If your showroom uses directional LED at CRI 90+, cast is the only substrate that delivers the glass-like optical clarity that luxury retail demands.

For custom acrylic side tables, we CNC-route from cast PMMA sheet with diamond polishing and optional nano-coating. If you're maintaining acrylic furniture already in rotation, our cleaning and maintenance guide covers the daily-care protocol that preserves the nano-coating's scratch resistance over multi-year use.
